Barbed Wire
Short Description:
Barbed Wire Length Per Roll is a new kind of protective fencing with such advantages as beautiful appearance,economical cost and practicality,and convenient construction.
Barbed wire is used in various security fences and barriers. It can be laid directly on the ground, installed on top of a fence or in rows as a free-standing barrier.

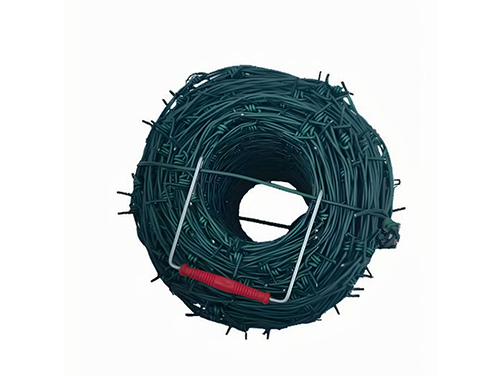

To prevent corrosion, barbed wire is available in galvanized, PVC coated and stainless steel.
Barbed wire is regarded as an economical and effective protection measurement in both residential,agricultural, commercial and industrial applications.
Galvanized barbed wire | ||||
Wire diameter (BWG) | Length (m/kg) | |||
Barb Distance 3” | Barb Distance 4” | Barb Distance 5” | Barb Distance 6” | |
12x12 | 6.06 | 6.75 | 7.27 | 7.63 |
12x14 | 7.33 | 7.90 | 8.30 | 8.57 |
12.5x12.5 | 6.92 | 7.71 | 8.30 | 8.72 |
12.5x14 | 8.10 | 8.81 | 9.22 | 9.56 |
13x13 | 7.98 | 8.89 | 9.57 | 10.05 |
13x14 | 8.84 | 9.68 | 10.29 | 10.71 |
13.5x14 | 9.60 | 10.61 | 11.47 | 11.85 |
14x14 | 10.45 | 11.65 | 12.54 | 13.17 |
14.5x14.5 | 11.98 | 13.36 | 14.37 | 15.10 |
15x15 | 13.89 | 15.49 | 16.66 | 17.50 |
15.5x15.5 | 15.34 | 17.11 | 18.40 | 19.33 |
Wire Diameter | Barbs’ distance | Barb length | |
Before coating | After coating | 7.5cm - 15cm | 1.5cm - 3cm |
1.0mm -3.5mm | 1.4mm -4.0mm | ||
BWG20 BWG11 | BWG17 BWG8 | ||
Different colors and length are available at customers request
|  |
 |  |
