Temporary Fence

Temporary Fence also called Portable Fence , Construction Site Fence , which is convenient both in installation and movement. Durable hot dipped galvanized steel wire material make the temporary fence panel and post has a long service life

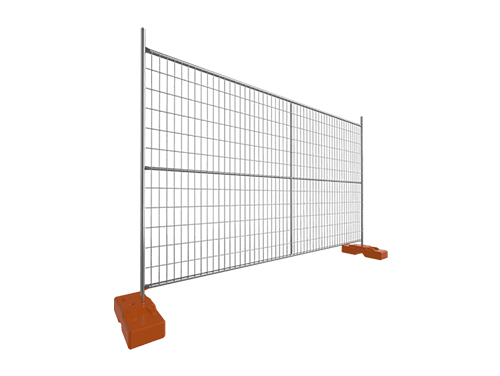

Australia Temporary Fence

Height:1800 mm, 2100 mm, etc.

Width:2100 mm, 2400 mm, 2900 mm, etc.

Wire Diameter:2.5 mm, 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm

Mesh Opening:50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm, 75 mm × 150 mm

Frame:Round pipe (outside diameter 32 mm, 38 mm, 40 mm, 42 mm, 48 mm)

Feet:580 mm × 245 mm × 130 mm, 600 mm × 220 mm × 150 mm

Notes: hot dipped galvanized before welding or hot dipped galvanized after welding

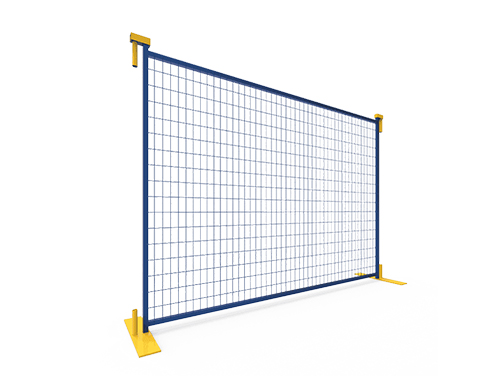

Canada Temporary Fence

Height × Width:6 ft × 9 ft, 6 ft × 9.5 ft, 6 ft × 10 ft.

Wire Diameter:3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 4.5 mm, etc.

Mesh Opening:50 mm × 100 mm, 50 mm × 150 mm, 50 × 200 mm, 75 mm × 100 mm, 75 mm × 150 mm Frame:Outside Frame: 25 × 25 mm, 30 × 30 mm

Middle Frame: 20 × 20 mm, 25 × 25 mm

Frame Thickness: 0.8/1.0/1.2/1.5/2.0/2.5 mm

Base:563 mm × 89 mm × 7 mm, 863 mm × 89 mm × 8 mm, etc.

Notes:Galvanized and powder coated treatment;

All colors are available in Ral;

Other specifications are available upon request.

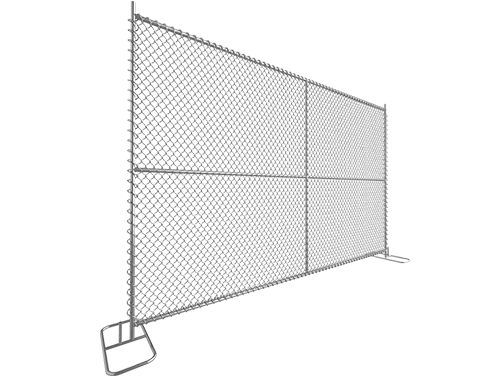

Temporary Chain Link Fence

Height:1800 mm, 2400 mm

Width:2400 mm, 3000 mm, 3700 mm, 4300 mm

Wire Diameter:2.5 mm, 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm

Mesh Opening:50 mm × 50 mm, 57 mm × 57 mm, 60 mm × 60 mm, 70 mm × 70 mm

Frame:Round pipe (outside diameter 32 mm, 38 mm, 40 mm)

Base:915 mm × 350 mm × 200 mm, 760 mm × 460 mm × 200 mm

Notes: Other materials and specifications are available upon request.

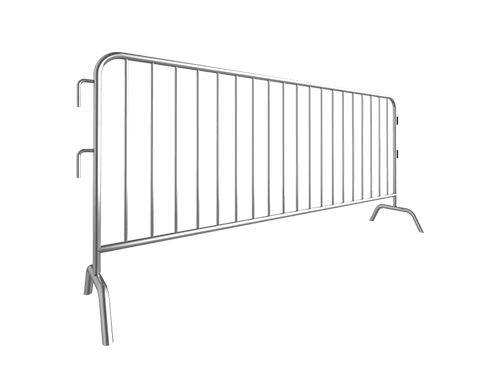

Crowd Control Barrier

Height:1.1 m, 1.25 m, 1.5 m

Width:2.0 m, 2.1 m, 2.2 m, 2.4 m, 2.5 m

Frame:32 × 1.2/1.5/2.0 mm

38 × 1.2/1.5/2.0 mm

42 × 1.2/1.5/2.0 mm

48 × 1.2/1.5/2.0 mm

Inner pipe:12 × 0.7 mm, 14 × 1.0 mm, 16 × 1.0 mm, 20 × 1.2 mm, 25 × 1.2 mm

Connection:metal hook

Spacing:60 mm, 100 mm, 120 mm, 150 mm, 200 mm

Notes:

Galvanized and powder coating treatment;

All colors are available in Ral;

Other specifications are available upon request.
