Gabion Box
Short Description:

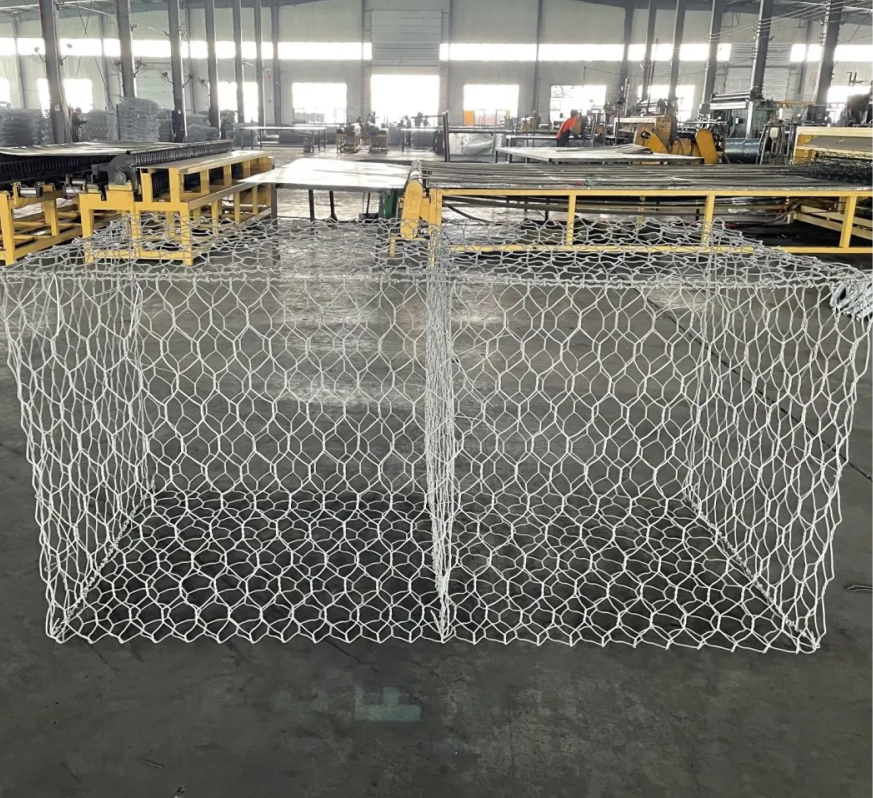

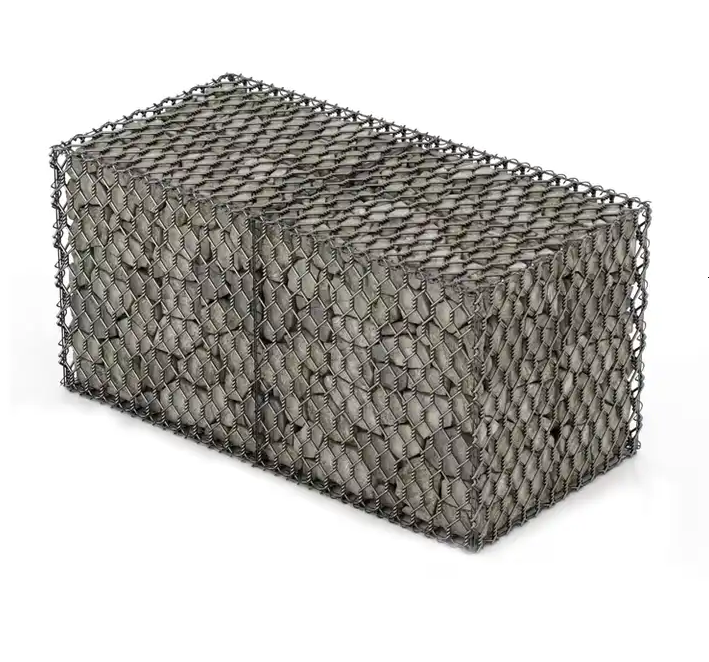

Gabion box is a types of boxed shaped container for foundation constructions. It is made of double twisted hexagonal meshes with high strength-and durability.
Gabion box is a types of boxed shaped container for foundation constructions. It is made of double twisted hexagonal meshes with high strength-and durability.
As we all know, the gabion baskets are more-and more popular in both foundation constructions-and architectural decorations
Optional Material:
1.Galvanized wire:zinc coating can be from 40-280g per square meter.
2.Galfan wire:also called aluminum-zinc coated wire (10% Al)zinc weight can be from 200g-500g per square meter.
3.PVC coated wire:The inner wire is galvanized wire-or galfan wire,and the regular color is gray-and green.
Specification:
Item | Mesh wire (mm) | Selvedge wire(mm) | Lacing wire(mm) |
Galvanized /Galfan Gabion box | 2.4 | 3.0 | 2.2 |
2.7 | 3.4 | 2.2 | |
3.0 | 3.9 | 2.2 | |
PVC coated gabion box | 2.4/3.4 | 3.0/4.0 | 2.2/3.2 |
2.7/3.7 | 3.4/4.4 | 2.2/3.2 | |
3.0/4.0 | 3.9/4.9 | 2.2/3.2 |
Mesh size:
60x80mm ,80x100mm,100x120mm
Box size:
1x1x1m | 1.5x1x1m |
2x1x1m | 2x1.5x1m |
3x1x1m | 4x1x1m |
5x1x1m | 5x1.5x1m |
Length ,width-and height can be produced as per customers’ requirement.
 |  |
 |  |
