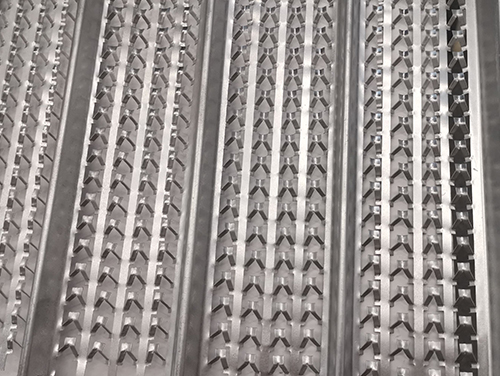

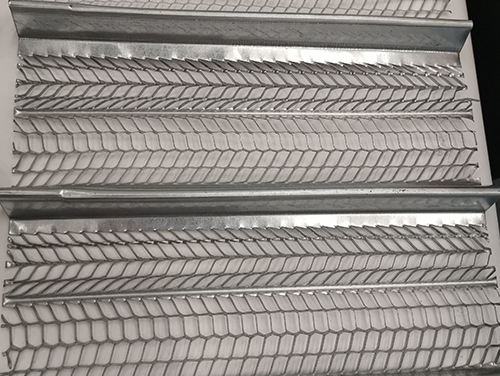

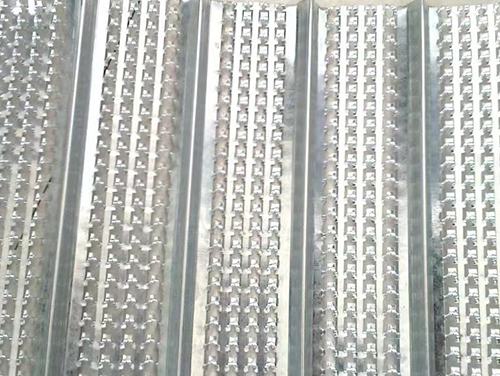

Ribbed Expanded Metal Lath
Short Description:
It is used as the consumable template. The edges of the open of the mesh will be inset in the concrete when the concrete pouring behind the formwork.
We offer high rib mesh made from hot-dipped galvanized steel sheets. Due to its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.
Feature and Application

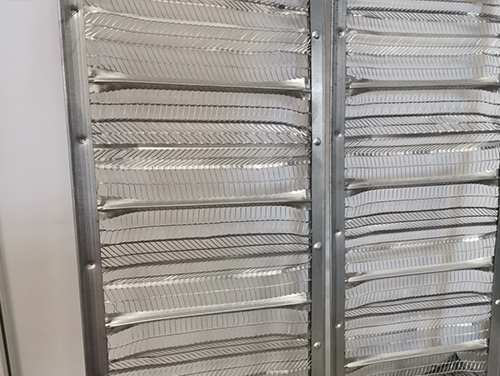

High rib mesh has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works as concrete permanent assembly-free formwork.

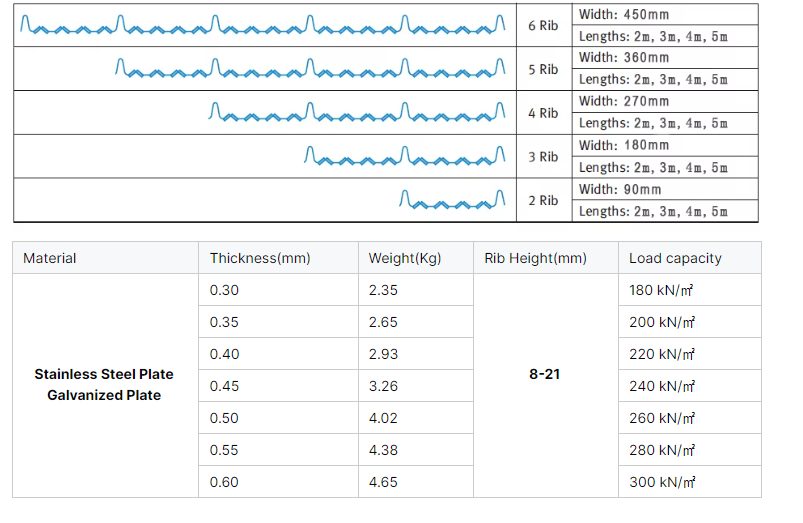

| 6 Rib | Width:450mm |
Lengths:2m,3m,4m,5m | ||
| 5 Rib | Width:360mm |
Lengths:2m,3m,4m,5m | ||
| 4 Rib | Width:270mm |
Lengths:2m,3m,4m,5m | ||
| 3 Rib | Width:180mm |
Lengths:2m,3m,4m,5m | ||
| 2 Rib | Width:90mm |
Lengths:2m,3m,4m,5m |
Material | Thickness(mm) | Weight(kg) | Rib Height(mm) | Load capacity |
Stainless steel plate galvanized plate | 0.30 | 2.35 | 8-21 | 180 KN/m2 |
0.35 | 2.65 | 200 KN/m2 | ||
0.40 | 2.93 | 220 KN/m2 | ||
0.45 | 3.26 | 2400 KN/m2 | ||
0.50 | 4.02 | 260 KN/m2 | ||
0.55 | 4.38 | 280 KN/m2 | ||
0.60 | 4.65 | 300 KN/m2 |
|  |
 |  |
