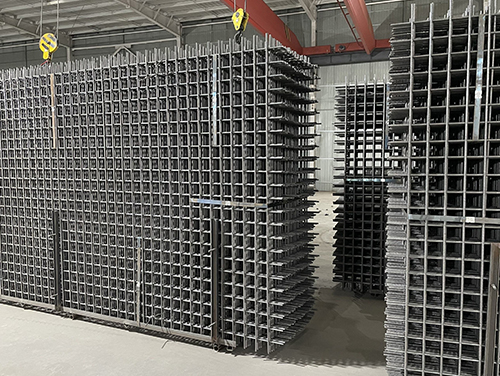

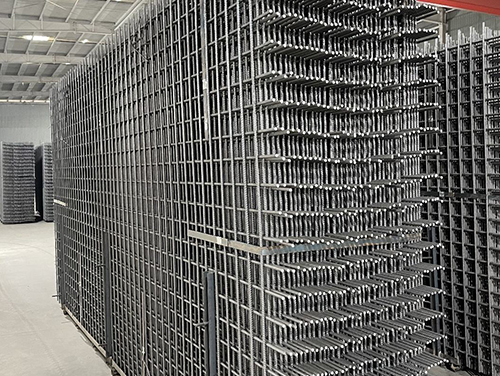

Reinforcement Panel

Short Description:

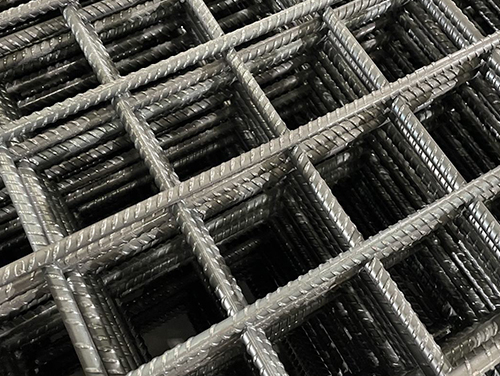

Reinforcing wire mesh is a welded wire fabric, prefabricated steel reinforcement material. The fabric is used to provide tensile strength and crack control to structural concrete elements.

WhatsApp: +86-15175853315 Email: info@glorymesh.com

Specification:

1.German standrard DIN488 (Size:2150MMX5000MM)

Ref No.	Std Unit	Longitudinal Wire(mm)	CrossWire(mm)	Pitch of wire(mm)	Mass(Kg)	Mass(Kg/m2)
Q131	Sheet	5	5	150 @ 150	22.476	2.091
Q188	Sheet	6	6	150 @ 150	32.401	3.014
Q221	Sheet	6.5/5.0	6.5	150 @ 150	33.707	3.136
Q295	Sheet	7.5/5.5	7.5	150 @ 150	44.245	4.116
Q378	Sheet	8.5/6	8.5	150 @ 150	66.659	5.157

2:Australia/New Zealand Standard AS/NZS 4671:2001(Size:6000X2400mm)

Ref No.	Std Unit	Longitudinal Wire(mm)	Edge Wire(mm)	Cross Wires(mm)	Mass(Kg)
SL81 (F81)	Sheet	7.6 @ 100	7.60 @ 100	7.60 @ 100	105
SL102 (F102)	Sheet	9.5 @ 200	6.75 @ 100	9.50 @ 200	80
SL92 (F92)	Sheet	8.6 @ 200	6 @ 100	8.60 @ 200	66
SL82 (F82)	Sheet	7.6 @ 200	5.37 @ 100	7.60 @ 200	52
SL72 (F72)	Sheet	6.75 @ 200	4.77 @ 100	6.75 @ 200	41
SL62 (F62)	Sheet	6 @ 200	4.77 @ 100	6 @ 200	33
SL52 (F52)	Sheet	4.77 @ 200	4.77 @ 100	4.77 @ 200	21

3. British Standard BS4483

Ref No.	Std Unit	Longitudinal Wire(mm)	Cross Wire(mm)	Pitch of wire(mm)	No. of sheet per ton	Mass(Kg/m2)
A393	Sheet	10	10	200 @ 200	15	6.16
A252	Sheet	8	8	200 @ 200	22	3.95
A193	Sheet	7	7	200 @ 200	29	3.02
A142	Sheet	6	6	200 @ 200	40	2.22
A98	Sheet	5	5	200 @ 200	57	1.54
