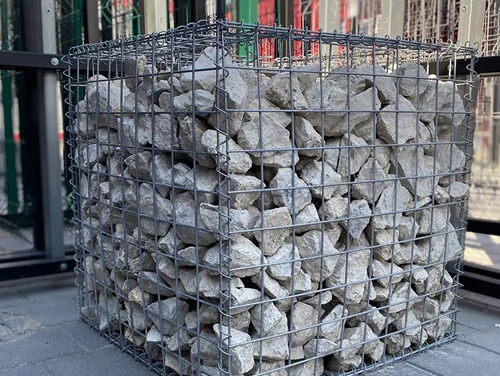

Welded gabion basket is commonly made from galfan or galvanized steel wire. Features with rigid structure, durable life and greater strength for both engineering constructions and architectural decorations.

Optional Material:

1.Galvanized wire:zinc coating can be from 40-280g per square meter.

2.Galfan wire:also called aluminum-zinc coated wire (10% Al)zinc weight can be from 200g-500g per square meter.

3.PVC coated wire:The inner wire is galvanized wire or galfan wire,and the regular color is gray and green.

Dimensions

Material: galvanized steel wire, galfan coated steel wire or stainless steel wire.

Mesh Size: 50x50mm, 75x75mm, 100x50mm, 100x100mm

Box Size: 2x1x0.5m, 1x0.5x0.5m, 1x0.6x0.4m etc.

Diameter: 2.5-6.0mm

Pattern: welded

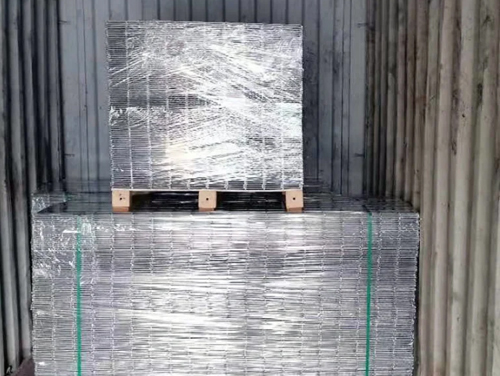

Packing: In pallets

Tensile Strength: 380-550 N/MM2

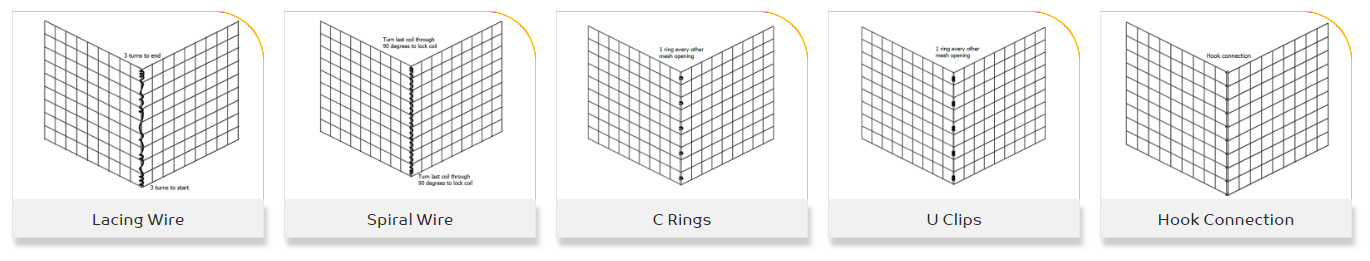

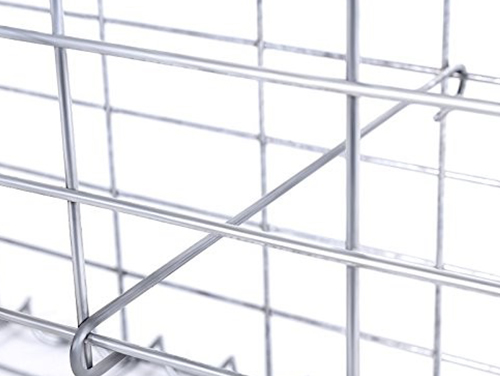

Jointing

There are several accessories for connect and joint welded wire mesh panels together
